BrixXLAB Universal Multichannel Desktop Lasers for Laboratory Research

BrixXLAB Universal Desktop Laser for Laboratory Research
BrixXLAB Universal Multichannel Desktop Lasers for Laboratory Research


Key Facts:

• Individual channel adjustment for output power
• Individual or grouped timer functionality
• Analog and digital modulation via external signal per channel
• Input for external power measurement systems to be displayed on the screen




BrixXLAB - Specifications:

Available Models:

BrixXLAB-2 for up to 2 wavelengths
BrixXLAB-4 for up to 4 wavelengths

(Customized versions available on request!)

Current Wavelength Range

375nm to 1550nm, one per channel integratable

Output Channels

1/2/3/4

Language Selection

Yes

Fiber Types:

MultiMode fibers

Touchscreen User Interface

Yes

Timer

Yes (Individual or grouped)

Modulation

Analog

Digital

Control interface:

USB

Laser control software:

WindowsTM based laser control software - Omicron Control Center (OCC)

Supply voltage:

100 – 240 VAC; 50 – 60 Hz; up to 250 VA

BrixXLAB Laboratory Universal Multichannel Desktop Laser

The BrixXLAB is a universal touchscreen-controlled multichannel desktop laser for laboratory applications with the possibility to integrate up to 4 different wavelengths in the range of 375nm to 1550nm (one per channel), paired with an individual or groupable timer function.

Application Advantages:

– Desktop system with touch-screen control, no PC necessary
– High safety due to fiber detection per channel, no laser emission if fiber is not connected

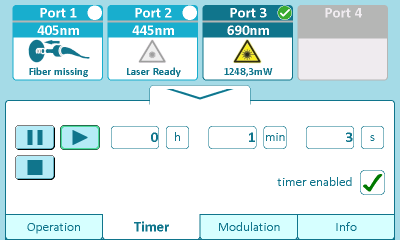

Each BrixXLAB laser combiner and the different features, such as the timer function, can be controlled via touchscreen interface.

In addition, the BrixXLAB can also be managed via the included Omicron Control Center (OCC) – Laser Control Software.
