LuxX® Diode Laser Series

LuxX® Series Diode Laser
LuxX® compact CW laser diode modules for biotech and industrial applications

Key Facts:
• Small and compact design
• 36 different wavelengths between 375nm and 1550nm
• Single-Mode optical output powers up to 500mW
• High-Stability CW operation (ACC and APC mode)
• Fast analogue modulation
• Electronic shutter function (laser inhibit) with >150kHz full ON/OFF capability
• Automatic Aging Compensation (AAC) function
• USB2.0 and RS-232 interface
• 0.7mm beam diameter option
• Industry standard footprint
• Drivers for Metamorph, LabVIEW and Micromanager available

Specifications LuxX Diode Laser Series

LuxX® Series


Wavelengths & Powers
(other wavelengths and
powers on request)
Modell Wavelength / Power
LuxX® 375-20 375nm / 20mW
LuxX® 375-70 375nm / 70mW
LuxX® 395-120 395nm / 120mW
LuxX® 405-20 405nm / 20mW
LuxX® 405-60 405nm / 60mW
LuxX® 405-120 405nm / 120mW
LuxX® 405-300  405nm / 300mW
LuxX.HP® 405-600 405nm / 600mW
LuxX® 415-120 415nm / 120mW
LuxX® 425-120 425nm / 120mW
LuxX® 445-50 445nm / 50mW
LuxX® 445-100  445nm / 100mW
LuxX® 445-500 445nm / 500mW
LuxX® 457-100 457nm / 100mW
LuxX® 457-500 457nm / 500mW
LuxX® 460-100 460nm / 100mW
LuxX® 473-20 473nm / 20mW
LuxX® 473-80 473nm / 80mW
LuxX® 473-100 473nm / 100mW
LuxX® 473-300 473nm / 300mW
LuxX® 488-25 488nm / 25mW
LuxX® 488-60 488nm / 60mW
LuxX® 488-80 488nm / 80mW
LuxX® 488-100  488nm / 100mW
LuxX® 488-150  488nm / 150mW
LuxX® 488-200 488nm / 200mW
LuxX® 488-300 488nm / 300mW
LuxX.HP® 488-600 488nm / 600mW
LuxX® 505-80 505nm / 80mW
LuxX® 515-25 515nm / 25mW
LuxX® 515-50 515nm / 50mW
LuxX® 515-80 515nm / 80mW
LuxX® 515-100 515nm / 100mW
LuxX® 515-150 515nm / 150mW
LuxX® 633-100 633nm / 100mW
LuxX® 638-40 638nm / 40mW
LuxX® 638-100 638nm / 100mW
LuxX® 638-150 638nm / 150mW
LuxX® 638-200 638nm / 200mW
LuxX® 642-140 642nm / 140mW
LuxX® 647-140 647nm / 140mW
LuxX® 660-130 660nm / 130mW
LuxX® 675-200 675nm / 200mW
LuxX® 685-50 685nm / 50mW
LuxX® 690-200 690nm / 200mW
LuxX® 705-40 705nm / 40mW
LuxX® 730-40 730nm / 40mW
LuxX® 785-120 785nm / 120mW
LuxX® 785-200 785nm / 200mW
LuxX® 808-140 808nm / 140mW
LuxX® 830-140 830nm / 140mW
LuxX® 850-100 850nm / 100mW
LuxX® 945-200 945nm / 200mW
LuxX® 980-200 980nm / 200mW
LuxX® 1030-100 1030nm / 100mW
LuxX® 1060-150 1060nm / 150mW
LuxX® 1080-80 1080nm / 80mW
LuxX® 1310-50 1310nm / 50mW
LuxX® 1550-100 1550nm / 100mW

Beam diameter
(other diameters on request)

1.0 ... 1.5mm (1/e²), (depends on wavelength)

0.7mm (1/e²) +/- 0.1mm with option XX.DSO

Beam quality M²

<1.15    (1.05 typical)

Astigmatism (corrected)

<0.2*ZR

Beam ellipticity

<1.15:1

Polarisation

>100:1 vertical

Long term power stability

<0.5% / 8h

RMS Noise  20Hz...10MHz
                      10MHz...500MHz

<0.2% (CW)
<0.2% (CW)

Operation Modes
    Mode 1
    Mode 2
    Mode 3


CW operation (ACC - Automatic Constant Current)
CW operation (APC - Automatic Power Control)
Analogue modulation

Analogue modulation
    Input signal type

>1.5MHz
0...5V (4,7kOhm)

Laser Enable (electronic shutter)
    Input signal type

>150kHz (full ON/OFF)
TTL (2kOhm)

Rise- and falltime

Analogue:        < 200ns
Laser Enable: < 2µs

Extinction ratio

Analogue:       >1000 : 1
Laser Enable: infinite (full ON/OFF)

Supply voltage

5.00 VDC   +/- 0.50 VDC

Control interface

RS-232 and USB 2.0

Dimensions laser head

100 x 40 x 40mm  (l x w x h)

Options & Accessories
XX.PSU world wide power supply unit for LuxX / PhoxX series lasers
XX.COL collimator objective for beam diameters up to 2,5mm (1/e²)
XX.DSO collimator objective for 0.7mm (1/e²) beam diameter
XX.CDRH remote control box with key switch and emission LED for CDRH compliant operation
LUXX.HEATSINK standard heatsink for LuxX series laser heads
XX.FASYADAP Fibre coupling adapter mount for Omicron fibre coupling units and other fibre coupling systems with 1-inch grid mounting holes
LuxX® Series Diode Lasers

The LuxX® Diode Laser Series offers high-performance at a compact design. A broad variety of wavelengths and single-mode emission up to 500mW cover a wide range of applications. Easy integration into existing or future designs is assured by its industry standard footprint. The USB2.0 and the RS-232 interface allow deep integration of the lasers into the applications process.

Applications:

- Flow Cytometry
- Confocal Microscopy
- Optogenetics
- Microlithography
- Test and Measurement
- Machine Vision

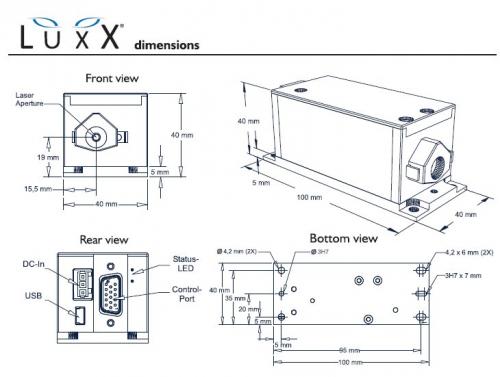

LuxX dimensional drawings

Downloads

LuxX Serie Datasheet

LuxX Serie Datasheet
