PhoxX® Diode Laser Series

PhoxX® Series Diode Laser
PhoxX® laser diode modules for CW or modulated applications

Key Facts:

• Small and compact design
• 21 different wavelengths between 375nm and 830nm
• Single-Mode optical output powers up to 300mW
• High-Stability CW operation
• High-Speed digital and/or analogue modulation
• Electronic shutter function (laser inhibit) with >300kHz full ON/OFF capability
• Automatic Aging Compensation (AAC) function
• 0.7mm beam diameter option
• Flexible, customer configurable input signaling
• Industry standard footprint

Specifications PhoxX Diode Laser Series



PhoxX® Series



Wavelengths & Powers
(other wavelengths and
powers on request)

Modell Wavelength / Power
PhoxX® 375-20 375nm / 20mW
PhoxX® 375-70 375nm / 70mW
PhoxX® 395 395mn / 120mW
PhoxX® 405-60 405nm / 60mW
PhoxX® 405-120 405nm / 120mW
PhoxX® 405-300 405nm / 300mW
PhoxX® 415 415nm / 120mW
PhoxX® 425 425nm / 120mW
PhoxX® 445-50 445nm / 50mW
PhoxX® 445-100 445nm / 100mW
PhoxX® 457 457nm / 100mW
PhoxX® 460 460nm / 100mW
PhoxX® 473-20 473nm / 20mW
PhoxX® 473-80 473nm / 80mW
PhoxX® 473-100 473nm / 100mW
PhoxX® 488-25 488nm / 25mW
PhoxX® 488-60 488nm / 60mW
PhoxX® 488-80 488nm / 80mW
PhoxX® 488-100 488nm / 100mW
PhoxX® 488-150 488nm / 150mW
PhoxX® 488-200 488nm / 200mW
PhoxX® 515-25 515nm / 25mW
PhoxX® 515-50 515nm / 50mW
PhoxX® 515-80 515nm / 80mW
PhoxX® 638-40 638nm / 40mW
PhoxX® 638-100 638nm / 100mW
PhoxX® 638-150 638nm / 150mW
PhoxX® 642 642nm / 140mW
PhoxX® 647  647nm / 140mW
PhoxX® 660 660nm / 130mW
PhoxX® 685 685nm / 50mW
PhoxX® 705 705nm / 40mW
PhoxX® 730 730nm / 40mW
PhoxX® 785 785nm / 120mW
PhoxX® 808 808nm / 140mW
PhoxX® 830 830nm / 140mW

Beam diameter
(other diameters on request)

1.0...1.5mm (1/e²), (depends on wavelength)

0.7mm (1/e²) +/- 0.1mm with option XX.DSO

Beam quality M²

<1.2

Astigmatism (corrected)

<0.2*ZR

Beam ellipticity

<1.2:1

Polarisation

>100:1 vertical

Long term power stability

<0.5% / 8h (in CW operation mode)
< 2% / 8h (in modulation mode)

RMS Noise  20Hz...10MHz
                      10MHz...500MHz

<0.2% (CW)
<0.2% (CW)

Operation Modes
    Mode 1
    Mode 2
    Mode 3
    Mode 4


CW operation
Analogue modulation
Digital modulation
Mixed analogue & digital modulation

Digital modulation
    Input signal type

>180MHz
TTL (200 Ohm)  /  0...1V (50Ohm)  /  LV-PECL  /  PECL  /  LVDS
(user configurable)

Analogue modulation
    Input signal type

>3MHz
0...1V (50Ohm)  /  0...5V (1,2kOhm)
(user configurable)

Laser Enable (electronic shutter)
    Input signal type

>300kHz (full ON/OFF)
TTL (2kOhm)

Rise- and falltime

Digital:              < 1.5ns
Analogue:        < 100ns
Laser Enable: < 200ns

Extinction ratio

Digital:             >250 : 1
Analogue:       >1000 : 1
Laser Enable: infinite (full ON/OFF)

Supply voltage

5.00 VDC   +/- 0.50 VDC

Control interface

RS-232 and USB 2.0

Dimensions laser head

100 x 40 x 40mm  (l x w x h)

Dimensions laser controller

120 x 62 x 40mm  (l x w x h)

Options & Accessories

XX.PSU    world wide power supply unit for PhoxX / LuxX series lasers
XX.DSO collimator objective for 0.7mm (1/e²) beam diameter
XX.CDRH remote control box with key switch and emission LED for CDRH compliant operation
PHOXX.HEATSINK standard heatsink for PhoxX Series laser heads
XX.FASYADAP Fiber coupling adapter mount for LDM Series fiber coupling units and other fiber coupling systems with 1-inch grid mounting holes
PhoxX® Series Diode Lasers


The PhoxX® Diode Laser Series offers high-performance at a compact design. A broad variety of wavelengths and single-mode emission up to 140mW cover a wide range of applications. Easy integration into existing or future designs is assured by versatile input signal types. The USB2.0 and the RS-232 interface allow deep integration of the lasers into the applications process.

Applications:

- Flow Cytometry
- Confocal Microscopy
- Optogenetics
- Printing / CtP
- Microlithography
- Reprographics
- Test and Measurement
- Machine Vision

PhoxX laser head front  PhoxX laser controller front

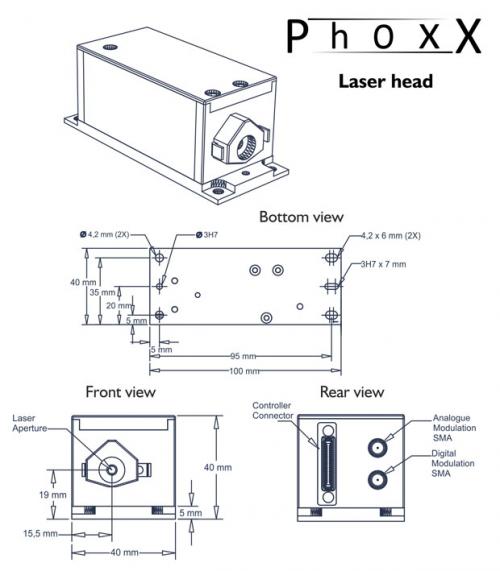

PhoxX dimensional drawing laser head

Dimensional drawings:

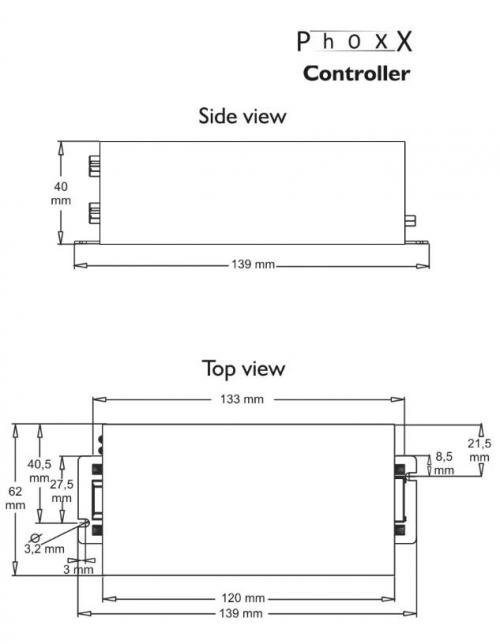

PhoxX dimensional drawing laser controller
