LightHUB+® – Plug&Play Laser Light Engines with up to 6 user-upgradable wavelengths

Key Facts:

• Up 6 wavelengths beam-combined and efficiently
fiber coupled in one compact housing
• Over 30 different wavelengths available
• Wavelengths upgradable by the end-user
• Single-mode, polarization maintaining or multi-mode fibre coupling
output
• Passive or active cooling with optional cooling unit
• All lasers with direct analoge and digital modulation
• Windows™ based laser control software included.
• Software drivers for Metamorph, LabVIEW and Micromanager available
LightHUB+® - Specifications:

Available models:

LightHUB+ Laser Light Engine

available wavelengths and powers:

(internal laser power)

375nm / 20mW, 70mW
395nm / 120mW
405nm / 60mW, 120mW, 300mW
415nm / 120mW
425nm / 120mW
445nm / 50mW, 100mW
457nm / 100mW
460nm / 100mW
473nm / 20mW, 80mW, 100mW
488nm / 20mW, 60mW, 80mW, 100mW, 150mW, 200mW
505nm / 80mW
515nm / 25mW, 50mW, 80mW, 100mW
532nm / 50mW, 80mW, 100mW, 150mW
552nm / 20mW, 60mW, 80mW, 100mW, 150mW
561nm / 20mW, 50mW, 80mW, 100mW, 150mW
594nm / 60mW, 100mW
633nm / 100mW
638nm / 40mW, 100mW, 150mW, 200mW
642nm / 140mW
647nm / 140mW
660nm / 130mW
685nm / 50mW
705nm / 40mW
730nm / 40mW
785nm / 120mW, 200mW
808nm / 140mW
830nm / 140mW
850nm / 100mW
870nm / 100mW
905nm / 150mW
945nm / 200mW
980nm / 200mW
1030nm / 150mW
1060nm / 150mW
1080nm / 80mW
1120nm / 50mW
1310nm / 50mW
1550nm / 100mW

Restrictions in some wavelenght combinations may apply.
Ask for possible combinations

Fibre coupling:

Type:                                      Single-mode, (PM)

                                               or Multi-mode fibres

Fibre output:                           FC/APC, FC/PC, FCP8 or SMA and

                                               collimated outputs diameters

                                               on customer's demand

Modulation Capabilities

Analogue Modulation:             up to 1.5MHz

Digital Modulation:                  up to 150kHz (full ON/OFF)

Control interfaces:

Type:                                      USB 2.0 / RS-232

                                              Interlock

                                              Key-Switch

Laser control software:

WindowsTM based laser control software

Supply voltage:

12VDC or 90-240VAC, 50/60Hz

Available options

LH+.COOL - optional active cooling unit for LightHUB+
XX.CDRH   - optional CDRH remote control box

Mechanical size:

L x W x H: 402mm x 402 x 97 mm (without cooling unit)
L x W x H: 402mm x 402 x 182 mm (with attached cooling unit)

LightHUB compact laser combiner

The LightHUB+® Plug&Play laser light engines can be equipped with up to six DPSS or diode lasers of different wavelengths in a compact and rugged design. Wavelengths between 375nm and 1550nm and optical output powers up to 300mW per laser line are possible. The LightHUB+ can be upgraded by the end-user from 1…6 wavelengths easily. Pre-assembled upgrade-kits consisting of the laser head. optical combiner block and an interface card can be installed at any time. The fiber output can be equipped with Single-Mode, polarization-maintaining fibres or Mult-Mode fibers with various ourput connectors or collimated beam diameters starting from 0.7mm. Six individual Analog and Digital Modulation Inputs as well as a RS-232 and USB Interface allow easy Integration Input control environemts. The system is designed to be both passively or actively cooled. By mounting it on a optical table or thicker breadboard, passive cooling is possible. If the system should be operated in a free-standing desk-top use, the optional active cooling unit with temperature controlled fans can be attached underneath.

Applications:

– Flow Cytometry
– Confocal Microscopy
– Optogenetics
– Test and Measurement
– Machine Vision

LightHUB+<sup>®</sup> laser light engine

LightHUB+ Laser Light Engine

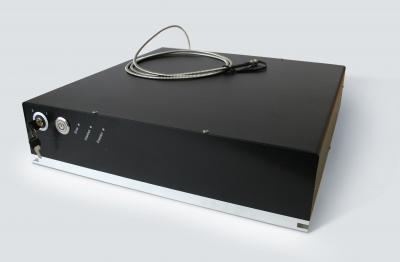

Front view

LightHUB+<sup>®</sup> laser light engine

LightHUB+ Laser Light Engine

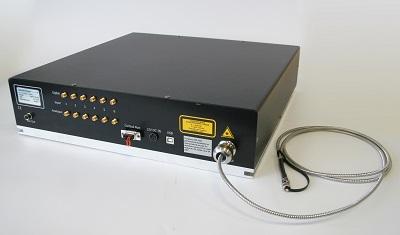

Rear view

LightHUB+ Laser Light Engine

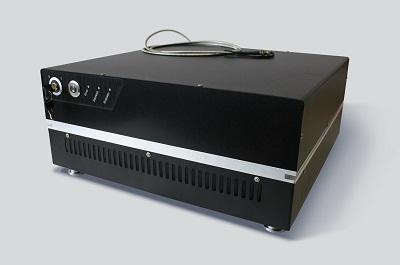

Front view with optional cooling unit attached

Recommended for free-standing / desktop use

LightHUB+<sup>®</sup> laser light engine

LightHUB+ Laser Light Engine
Rear view with optional cooling unit attached

Recommended for free-standing / desktop use

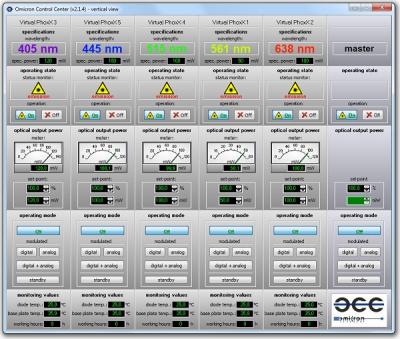

Omicron Control Center (OCC) Software

Each LightHUB+ laser light engine is delivered with the Omicron Control Center (OCC) – Laser Control Software.
The software can control multiple lasers and offers a Master section which controls all lasers in parallel. The OCC can be used for daily use or just for configuring the laser for computer independent operation once.
