LuxX® Diodenlaser Serie

LuxX Diodenlaser
LuxX® Kompakte CW Diodenlaser für biotechnologische und industrielle Anwendungen

Produktmerkmale:

• Kompaktes Design
• Erhältlich in 36 verschiedenen Wellenlängen zwischen 375nm und 1550nm
• Single-Mode Ausgangsleistungen bis zu 600mW
• Hochstabiler CW Betrieb
• Schnelle analoge Modulation
• Elektronische Shutter Funktion (Laser Inhibit) mit >150kHz
(vollständig AN / AUS)
• Automatic Aging Compensation (AAC) Funktion
• Option für 0.7mm Strahldurchmesser
USB 2.0 und RS-232 Schnittstelle
• Abmessungen und Befestigungspositionen nach Industriestandard
• Software Treiber für Metamorph, LabVIEW und Micromanager verfügbar

 Spezifikationen LuxX Diodenlaser

LuxX® Serie



Wellenlängen & Leistungen
(andere Wellenlängen und
Leistungen auf Anfrage)

Modell Wavelength / Power
LuxX® 375-20 375nm / 20mW
LuxX® 375-70 375nm / 70mW
LuxX® 395-120 395nm / 120mW
LuxX® 405-20 405nm / 20mW
LuxX® 405-60 405nm / 60mW
LuxX® 405-120 405nm / 120mW
LuxX® 405-300  405nm / 300mW
LuxX.HP® 405-600 405nm / 600mW
LuxX® 415-120 415nm / 120mW
LuxX® 425-120 425nm / 120mW
LuxX® 445-50 445nm / 50mW
LuxX® 445-100  445nm / 100mW
LuxX® 445-500 445nm / 500mW
LuxX® 457-100 457nm / 100mW
LuxX® 457-500 457nm / 500mW
LuxX® 460-100 460nm / 100mW
LuxX® 473-20 473nm / 20mW
LuxX® 473-80 473nm / 80mW
LuxX® 473-100 473nm / 100mW
LuxX® 473-300 473nm / 300mW
LuxX® 488-25 488nm / 25mW
LuxX® 488-60 488nm / 60mW
LuxX® 488-80 488nm / 80mW
LuxX® 488-100  488nm / 100mW
LuxX® 488-150  488nm / 150mW
LuxX® 488-200 488nm / 200mW
LuxX® 488-300 488nm / 300mW
LuxX.HP® 488-600 488nm / 600mW
LuxX® 505-80 505nm / 80mW
LuxX® 515-25 515nm / 25mW
LuxX® 515-50 515nm / 50mW
LuxX® 515-80 515nm / 80mW
LuxX® 515-100 515nm / 100mW
LuxX® 515-150 515nm / 150mW
LuxX® 633-100 633nm / 100mW
LuxX® 638-40 638nm / 40mW
LuxX® 638-100 638nm / 100mW
LuxX® 638-150 638nm / 150mW
LuxX® 638-200 638nm / 200mW
LuxX® 642-140 642nm / 140mW
LuxX® 647-140 647nm / 140mW
LuxX® 660-130 660nm / 130mW
LuxX® 675-200 675nm / 200mW
LuxX® 685-50 685nm / 50mW
LuxX® 690-200 690nm / 200mW
LuxX® 705-40 705nm / 40mW
LuxX® 730-40 730nm / 40mW
LuxX® 785-120 785nm / 120mW
LuxX® 785-200 785nm / 200mW
LuxX® 808-140 808nm / 140mW
LuxX® 830-140 830nm / 140mW
LuxX® 850-100 850nm / 100mW
LuxX® 945-200 945nm / 200mW
LuxX® 980-200 980nm / 200mW
LuxX® 1030-100 1030nm / 100mW
LuxX® 1060-150 1060nm / 150mW
LuxX® 1080-80 1080nm / 80mW
LuxX® 1310-50 1310nm / 50mW
LuxX® 1550-100 1550nm / 100mW

Strahldurchmesser
(weitere auf Anfrage)

1.00 ... 1.5mm (1/e²) (abhängig von der Wellenlänge)

0.7mm (1/e²) +/- 0.1mm mit XX.DSO Option

Strahlqualität M²

<1.15    (1.05 typisch)

Astigmatismus (korrigiert)

<0.2*ZR

Strahlelliptizität

<1.15:1

Polarisation

>100:1 vertikal

Leistungsstabilität

<0.5% / 8h

 RMS Rauschen  20Hz...10MHz
                               10MHz...500MHz

<0.2% (CW)
<0.2% (CW)

Betriebsarten
    Mode 1
    Mode 2
    Mode 3


CW Betrieb (ACC - Automatic Constant Current)
CW Betrieb (APC - Automatic Power Control)
Analog moduliert

Analoge Modulationsbandbreite
    Eingangssignalart

>1.5MHz
0...5V (4,7 kOhm)

Laser Enable (elektronischer Shutter)
    Eingangssignalart

>150kHz (komplett AN / AUS)
TTL (2 kOhm)

Anstiegs- / Abfallzeit

Analog:             < 200ns
Laser Enable: < 2µs

Modulationstiefe (extinction ratio)

Analog:            >1000 : 1
Laser Enable: unendlich (komplett AN/AUS)

Versorgungsspannung

5.00 VDC   +/- 0.50 VDC

Computer Interface

RS-232 and USB 2.0

Abmessungen Laserkopf

100 x 40 x 40mm  (L x B x H)



Optionen & Zubehör

XX.PSU Netzteil für Laser der PhoxX/LuxX Serie 85-245VAC, 50/60Hz --> 5VDC / 6 Amp.
XX.COL Strahlkompressor Objektiv für Strahldurchmesser bis 2,5mm (1/e²)

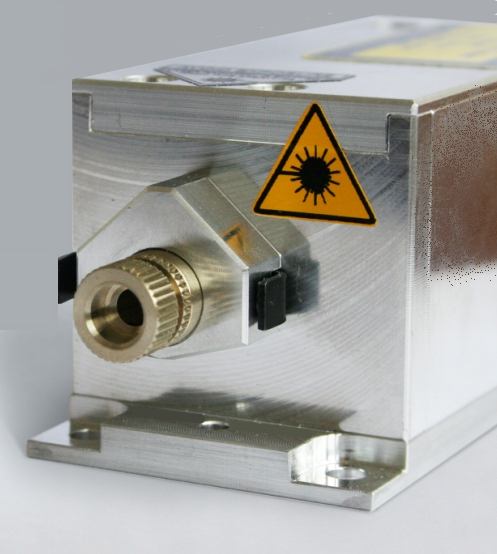

XX.DSO Strahlkompressor Objektiv für 0.7mm (1/e²) Strahldurchmesser
XX.CDRH Remote Control Box mit Schlüsselschalter und Emission LED für CDRH-konformen Betrieb
LUXX.HEATSINK Kühlkörper für Laserköpfe der LuxX Serie
XX.FASYADAP Faserkopplungsadapter-Platte zur Aufnahme einer Omicron Faserkopplung oder einer Faserkopplung anderer Hersteller mit 1 Zoll Befestigungsraster
LuxX Serie Diodenlaser

Die LuxX® Diodenlaser bieten beste Performance und kompaktes Design. Eine große Auswahl an Wellenlängen und Single-Mode Ausgangsleistungen von bis zu 500mW decken eine breite Auswahl von Anwendungen im industriellen und biotechnologischen Bereich ab. Einfachste Integration in existierende und zukünftige Applikationen ist durch die Abmessungen nach Industriestandard garantiert. Die USB2.0 und die RS-232 Schnittstelle erlauben eine hohe Integrationstiefe der Laser im gesamten Applikationsprozess.

Anwendungen:

- Flow Cytometrie
- Konfokale Mikroskopie
- Optogenetik
- Mikrolithographie
- Test and Measurement
- Machine Vision


Abmessungen der LuxX Diodenlaser
